LQ057Q3DG01 Sharp LCD Panel Normally White LCM 320×240 320 500:1 262K WLED TTL

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LQ057Q3DG01 Sharp LCD Panel Normally White LCM 320×240 320 500:1 262K WLED TTL

  • 1
  • 2
  • 3

Brand Name : Sharp

Model Number : LQ057Q3DG01

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : SHARP

Panel Model : LQ057Q3DG01

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 5.7 inch

Resolution : 320(RGB)×240 , QVGA

Display Mode : TN, Normally White, Transmissive

Contact Now

LQ057Q3DG01 Sharp LCD Panel Normally White LCM 320×240 320 500:1 262K WLED TTL

LQ057Q3DG01 Detail

Panel Brand :SHARP
Panel Model :LQ057Q3DG01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :5.7 inch
Resolution :
320(RGB)×240 , QVGA
Display Mode :TN, Normally White, Transmissive
Active Area :115.2×86.4 mm
Outline :144×103.8×14.3 mm
Surface :
Brightness :320 cd/m² (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K (6-bit)
Response Time :30/10 (Typ.)(Tr/Td)
Viewing Angle :
80/80/80/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency :60Hz
Lamp Type :5S4P WLED
Signal Interface :CMOS (1 ch, 6-bit) , 33 pins
Input Voltage :3.3V (Typ.)


What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

Panel Size :5.7 inch
Dot Resolution :320(RGB)×240 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :70 PPI
Aspect Ratio :
4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.120×0.360 mm (H×V)
Pixel Pitch :0.360×0.360 mm (H×V)
Weight :255g (Max.)
Active Area :115.2×86.4 mm (H×V)
Bezel Area :121.0×92.2 mm (H×V)
Outline Dimension :144×103.8 mm (H×V)
Outline Depth :13.8±0.5 mm
Holes & Brackets :
Side mounting holes (4-M2); Rear mounting holes (4 pcs)
Landscape or Portrait :Landscape type
Touch Panel :
Embeded (4-wire Resistive)


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LM016LC1S07SHARP1.9"96×128
LS050K3SX06ASHARP5.0"720×1280
LK460D3HA10SHARP46"1920×1080
LK315T3HB874SHARP31.5"1366×768
LK315T3HB873SHARP31.5"1366×768
LQ0DZC0156SHARP40"1920×1080
LX080M1BB01SHARP8.0"1920×1200
LS050K3SX09SHARP5.0"720×1280
LQ315D1EG02SHARP31.5"3840×2160

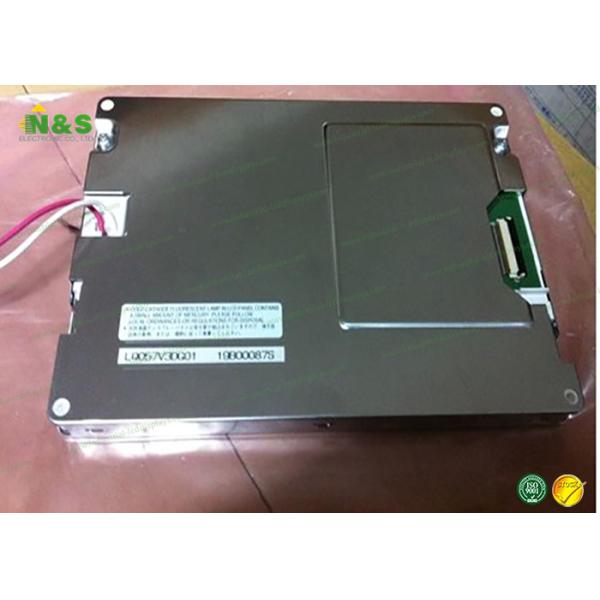

LQ057Q3DG01 Picture

LQ057Q3DG01 Sharp LCD Panel Normally White LCM 320×240 320 500:1 262K WLED TTL
